LepiSense

LepiSense features robust lighting to attract insects, a high-resolution camera, and high-capacity data storage. It is powered by a rechargeable battery and solar panel for extended field deployments, but also light-weight enough for frequent relocation. See how it can support your biodiversity monitoring, research, or conservation project.

• Preparation
• Materials
• Tools
• Steps
• Data access
• Maintenance

Preparation

1. Pre-charge the batteries. For this, simply connect the solar panel to the power module and leave the panel in the sun for 1-2 days. Do not connect the camera module at this point.
2. Package everything carefully to avoid damage during transport.

Materials

• LepiSense, including battery box and solar panel.
• 1-2 cable ties for battery box.
• Wooden pole, 5 cm diameter, ~80 cm height. (~30 cm in the ground and ~50 cm above the ground. Adjust according to soil type and vegetation height.) See Mounting Options for alternatives, including using a ground spike.

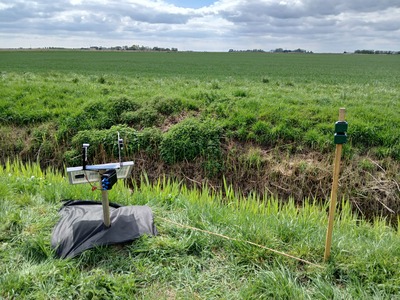

• If needed, weed-control matting.
• If needed, ~6 ground hooks for matting.

Tools

• Post driver (or other heavy tool; only needed if ground spike is not used).
• Compass (e.g., your phone).
• (Cordless) screwdriver.
• Saw (if cutting post in the field).

Steps

1. Drive the pole into the ground or use the ground spike.
2. If necessary, use the saw to cut the pole at 50 cm (or less) above ground, depending on vegetation height.

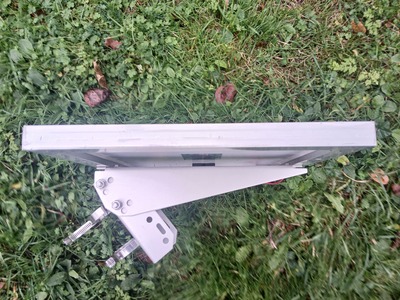

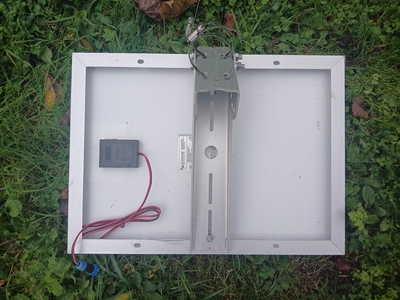

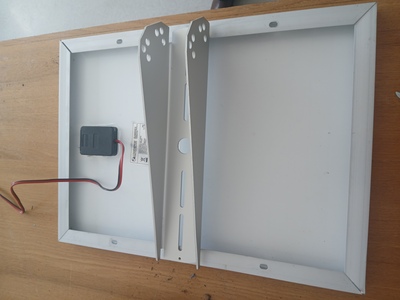

3. Lift the solar panel to the top of the pole.

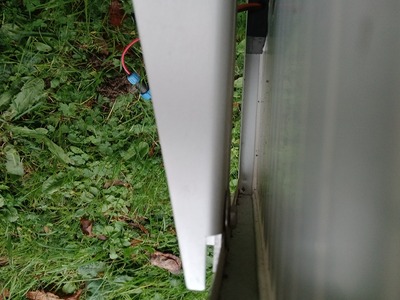

4. Push the solar panel down such that the “cable” ties surround the pole. The top of the solar panel must not be above the top of the pole.
5. Use a compass or a map to determine where south is.

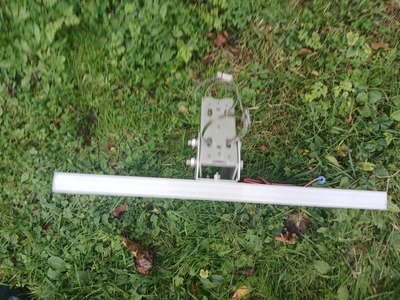

6. Orient the solar panel south. (Exactly south, not south-west or south-east.)

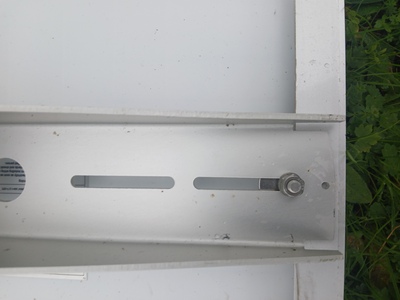

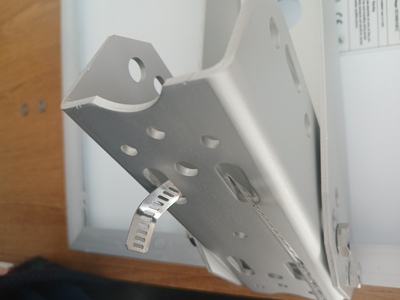

7. Use the cordless screwdriver to tighten both “cable” ties of the solar panel.
8. Pick-up a LepiSense. And remove all packaging and protective films.
9. Place the LepiSense on top of the pole, with the four holes in the bar matching the top of the pole. Orient the LepiSense in a way such that the landing board is not directly above the solar panel.

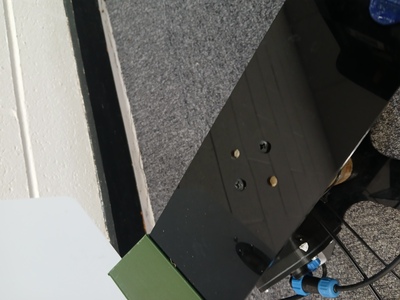

10. Use the screwdriver to drive 2-4 screws though the holes into the pole or use the plastic cap for mounting.
11. Place the battery box at the pole such that it is shaded by the solar panel.
12. Tighten the two cable ties of the battery box.
13. Slide the camera housing onto the open end of the bar opposite of the landing board. If desired, secure it with a bolt.
14. Optionally, check the device ID printed on the sticker on the camera housing (behind dev:) and note down the deployment location.
15. Plug the solar panel into the middle outlet of the battery box. Slightly tighten the screw ring.
16. Plug the camera into the remaining outer outlet of the battery box. Slightly tighten the screw ring.
17. Check the two LEDs on the front-right of the camera board (some devices also have LEDs on the centre, ignore these.) The red LED should light up for 1-5 minutes. Afterwards, both, the attractive light and the ring light should flash. Finally, the green/yellow LED should flash five times before the red LED turns off. If any of these patterns do not occur, follow the steps below:
    • The red LED does not light up. Power is not connected. Check the connection to the battery box.
    • The red LED stays permanently on, becoming darker and brighter (“breathing” pattern). Error when connecting power. Reconnect camera to battery box.
    • The red LED stays on for several minutes without change in brightness. No cellular connectivity. Assemble the LepiSense at a location with cellular connectivity and deploy the pre-assembled device. Make a note for that one that it may not have connectivity.
    • The red LED flashes five times. Error. Remove and re-insert microSD card, disconnect and reconnect camera and battery. If error persists, contact tech support.
    • The ring light does not flash. Error. Contact tech support.
    • The attractive light does not flash. Attractive light may not be connected. Check its connection to the battery box.

Data access

Pictures are stored on the microSD card inside the camera housing. To access the data:

1. Unplug the rubber plug.
2. Push against the microSD card to release it. (You should hear a click.)
3. Carefully pull out the microSD card. (You may need the plastic tweezers provided.)

Maintenance

We recommend maintenance visits every 1-3 months, depending on the deployment environment, to carry out the following steps:

1. Visually check for any obvious damage.
2. Wipe the solar panel to remove any dirt and leaves.
3. Check for overgrowth and cut vegetation back, if necessary.
4. Visually check the camera lens and wipe any dirt from the lens, if necessary.
5. Pull out the rubber plug, remove the microSD card, and check recent pictures.

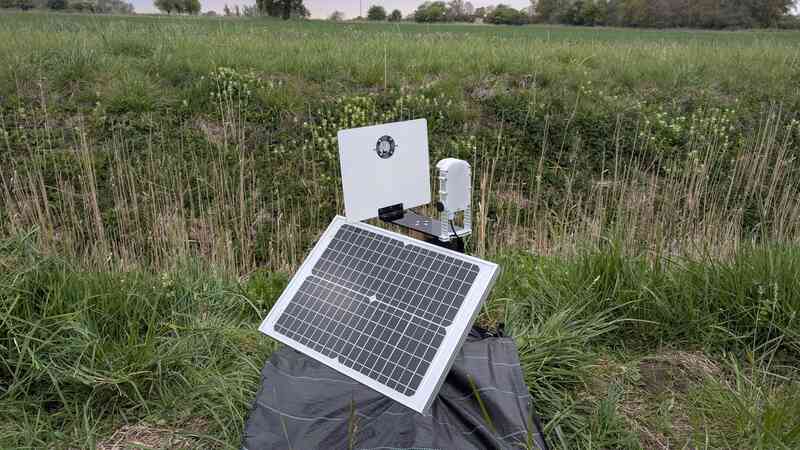

Mounting a LepiSense.

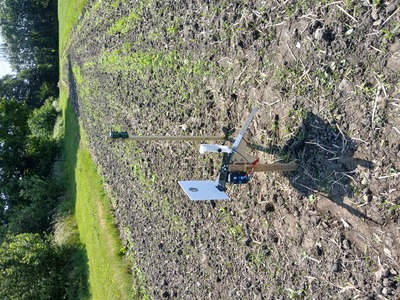

Wooden Stake

Materials: Wooden stake with about 5 cm diameter and about 80 cm height (about 30 cm under ground and 30-50 cm above ground) sourced by the trialist and 2-4 screws provided by UKCEH.

Tools: Post driver (or other heavy tool) and (cordless) screw driver.

Pros: Durable and low-cost.

Cons: Bulky stakes, tools required, and force required on hard soil.

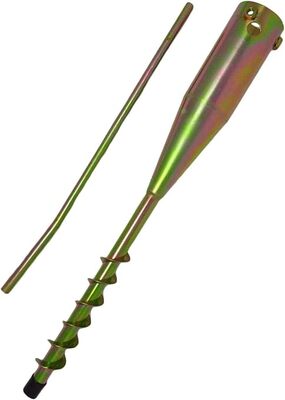

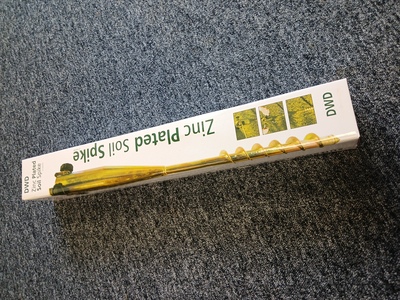

Soil/Ground Spike + Pole

Materials: Soil/ground/parasol spike with about 5 cm inner diameter sourced by trialist, PVC pipe or wooden pole with about 5 cm diameter and 30-80 cm height sourced by the trialist, and 2-4 screws or plastic mounting cup provided by UKCEH (plastic cup upon request).

Tools: (Cordless) screw driver if screws are used, none if plastic mounting cup is used.

Pros: Durable and no/little tools required.

Cons: More expensive and some force required on hard soil.

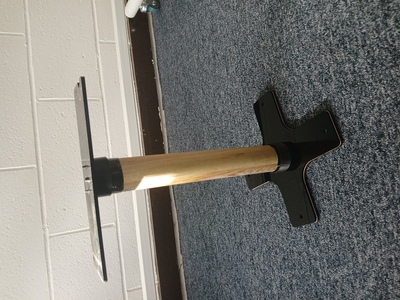

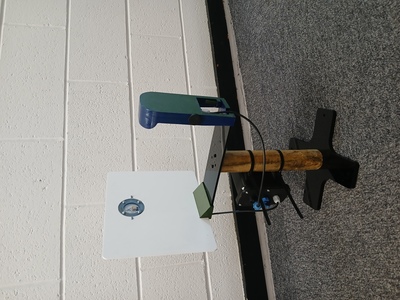

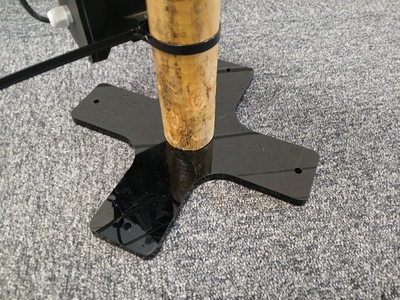

Cross-Shaped Foot + Pole

Materials: Cross-shaped acrylic foot provided by UKCEH (upon request), PVC pipe or wooden pole with about 5 cm diameter and 30-50 cm height sourced by the trialist, 2-5 screws and/or 1-2 mounting cups provided by UKCEH (plastic cup upon request), and up to 4 ground hooks sourced by the trialist.

Tools: (Cordless) screw driver if screws are used, none if only plastic mounting cups are used.

Pros: No/little tools required, very quick setup, highly portable, and low cost.

Cons: Less stable, does not support long poles, and force required on very hard soil.

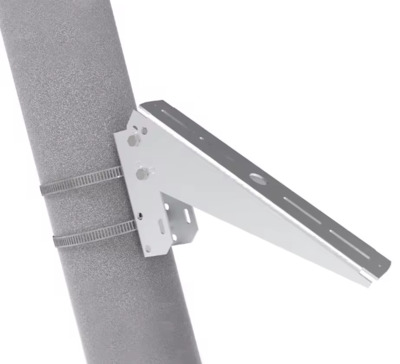

Post Mount

Materials: Post mount sourced by trialists, existing post or straps for tree mounting, and about 2 bolts and nuts sourced by trialist.

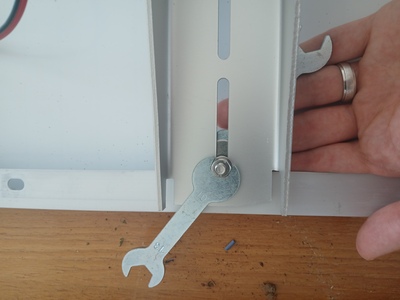

Tools: Spanners and screw driver.

Pros: Highly portable if used with existing pole/tree, durable, and independent off soil hardness.

Cons: Tools required, existing pole/tree required, more expensive, not tested by UKCEH, and tree canopy can shade solar panel.
