Exploration of chemical pollution from a place based perspective#
Notebook Repository
Ongoing Development
Primary Contact: Dr. Michael Hollaway
When thinking about a particular place (E.g. a particular point, town, city or even a region), people often want to know more about the levels of pollution in that region in the present and often the past. This presents a significant challenge as there are multiple sources of pollution (e.g. air pollution or water pollution) and multiple providers/collectors of pollution data (e.g. the Environment Agency (EA) or the Department for Environment, Food and Rural Affairs (Defra)). In addition there are ever increasing volumes of data being collected from a variety of sensor types. If someone wants to answer the question of “I lived in the North East of England from 2000 to 2025, what sort of pollution was I exposed to?” a significant challenge is presented to extract, filter, aggregate and visualized the data in a meaningful way. The resultant workflow often requires different tools and technical skills to be able to answer the question.
This notebook presents a demonstration of one potential approach to addressing this challenge using examples of data from the Defra managed Automatic Urban and Rural Network (AURN) and the EA managed Water quality Gas/Liquid Chromatography mass spectrometry (GCMS/LCMS) datasets to represent air and water pollution respectively. Developed using the python coding language the code shows methods for choosing a particular place, extracting all the available data for that place, calculating the summary statistics for that region (including some simple data science methods to interpolate between measurement locations) and visualizing the final results. Finally functionality is provided to run the notebook as a dashboard allowing the user to interactively run the analysis over different places.
Running the Notebook:
To run the notebook it is advised to first clone the repository housing the notebook (’git clone NERC-CEH/ds-toolbox-notebook-EEX-placebased-exposure.git’). This will create a folder in the current directory called ds-toolbox-notebook-EEX-placebased-exposure, which holds all the relevant files including the notebook, environment file and relevant input data. The next step is to create a conda environment with the right packages installed using the complete yml file (’conda env create -f environment_complete.yml’), which creates the EEX-placebased-exposure environment that can be activated using ‘conda activate EEX-placebased-exposure’. At this point the user can either run code from the notebook in their preferred IDE or via the jupyter interface using the command ‘jupyter notebook’.
Generalisability:
The methods and processes demonstrated in this notebook should be transferable to other datasets beyond the air quality and water quality examples used here. These methods should be able to work with other point based datasets and the spatial filtering should work for other polygons. The workflow presented is designed to be a starter example for a potential method to investigate location specific chemical pollution and is setup to be easily built upon for more detailed analysis.
Data Sources:
This notebook uses data from the following sources:
Air Quality Data: Automatic Urban and Rural Network (AURN)
A description of the AURN network is available from the UK-AIR website.The data are freely available to download and are provided by the Department for the Environment and Rural Affairs (Defra) under the following attribution statement:
© Crown copyright 2021 Defra via uk-air.defra.gov.uk, licensed under the Open Government Licence
Water Quality Data: Water quality monitoring data GC-MS and LC-MS semi-quantitative screen
A description of the EA water quality GC-MS and LC-MS semi-quantitative screen data is available from the data.gov.uk
This dataset is licensed under the Open Government Licence
UK Regional map data: Nomenclature of Territorial Units for Statistics (NUTS) Level 1
A description of the NUTS1 spatial dataset is available from the Office for National Statistics Open Geography Portal
Source: Office for National Statistics licensed under the Open Government Licence v.3.0
Contains OS data © Crown copyright and database right 2018
This dataset is licensed under the Open Government Licence
Computational Demands
It should be noted that whilst this notebook in its current form runs fairly quickly on a standard laptop computer, this is achieved by pre-processing the raw data files into parquet format and only demonstrating the functionality of the methods using fairly computationally light operations and on a relatively small dataset. Therefore the user should be aware that if they desire to bring in more complex or advanced analytical methods or larger datasets then the computational demand will likely increase and appropriate CPU/GPU time may be needed.
Introduction#
As part of the National Capability for UK Challenges (NC-UK) Programme the UK Environmental Exposure (UK-EEX) Hub is being developed to make it easier to discover, process, analyze and visualize the wealth of data regarding environmental pressures, particularly in relation to chemical pollutants. This notebook presents an example of how to take a place based approach to such an analysis and is expected to form the basis of this research area within the UK-EEX Hub.
The first step is to import all of necessary python packages that we need to carry out the workflow presented in this notebook. These include standard data manipulation packages such as pandas, polars and numpy, geospatial packages such as geopandas (to perform spatial operations), data visualisation packages such as matplotlib, analytical packages such as scipy and finally some packages that enable the notebook to also be run as an interactive dashboard should the user wish to do so.
If we want to run the notebook as a dashboard it will use the same code as if we were running it as a standard notebook, however we need to tell the notebook that we want any plots to be sent to the interactive elements so we set that functionality up here. For notebook clarity this code is hidden by default but can be viewed be expanding the drop down below.
ⓘ
Import the Chemical data#
The first job of understanding chemical pollution is to get hold of the relevant data that we wish to analyse. For purposes of demonstration this notebook will only utilise 2 datasets, but the workflow presented here could be expanded to included other datasets as required. The two datasets used are as follows (dataset source details are provided in the data sources section above):
Air Quality data from the UK AURN network
Measurements of veterinary medications in water from the EA GCMS/LCMS dataset.
For simplicity of loading, the data used in this notebook has already been pre-processed and stored in parquet format for optimal loading. Otherwise the data has not been modified from the original source.
We also load in the a shapefile containing the UK boundaries for the Nomenclature of Territorial Units for Statistics (NUTS) level 1 regions. The NUTS regions are a classification system used in the European Union (EU) to define regions for statistical purposes and has been adopted by the UK for similar purposes in previous analyses. The level 1 regions are the highest sub-national level and represent large regions of the UK such as Scotland, Wales, North West England, etc. For computational efficiency we use the NUTS1 regions in this notebook, but the methods presented should work with any UK polygon shapefile.
The code cell below loads in the data.
#Set the location of the data.
data_path = "./data/"
#Read in the NUTS regions - NUTS3 in this example.
NUTS_gdf = gpd.read_file(data_path + 'NUTS_Level_1_January_2018_GCB_in_the_United_Kingdom_2022_-2753267915301604886.geojson')
#Read in the pre-processed data.
all_data = pl.read_parquet(data_path + "EEX_all_data.parquet")
Sites_info_gdf = gpd.read_parquet(data_path + "Sites_info_gdf.parquet")
In order to set the NUTS regional data for the interactive dashboard we need to convert to a format the dashboard can use known as geoviews.
Now that the data is loaded in we can take a quick look at the head of each dataframe to inspect the data structure and what we have in each dataset. Let’s start with the air quality data. As out dataset contains both combined we need to filter on the air quality data only.
all_data.filter(pl.col('Measurement Category') == 'Air quality').head()
| Pollutant | Concentration | Site_ID | Unit | Source | Site_Type | Date | Measurement Category | Longitude | Latitude |
|---|---|---|---|---|---|---|---|---|---|
| str | f64 | str | str | str | str | datetime[μs, UTC] | str | f64 | f64 |
| "co" | 1.033333 | "A3" | "mg/m3" | "aurn" | "Urban Traffic" | 2000-01-01 00:00:00 UTC | "Air quality" | -0.291853 | 51.37348 |
| "co" | 0.783333 | "A3" | "mg/m3" | "aurn" | "Urban Traffic" | 2000-01-02 00:00:00 UTC | "Air quality" | -0.291853 | 51.37348 |
| "co" | 0.454167 | "A3" | "mg/m3" | "aurn" | "Urban Traffic" | 2000-01-03 00:00:00 UTC | "Air quality" | -0.291853 | 51.37348 |
| "co" | 1.004167 | "A3" | "mg/m3" | "aurn" | "Urban Traffic" | 2000-01-04 00:00:00 UTC | "Air quality" | -0.291853 | 51.37348 |
| "co" | 0.665217 | "A3" | "mg/m3" | "aurn" | "Urban Traffic" | 2000-01-05 00:00:00 UTC | "Air quality" | -0.291853 | 51.37348 |
We can see that our dataset has the following columns:
Pollutant: The name of the chemical of being measured
Concentration: The concentration measured at the given location/time.
Site_ID: The unique identifier of the measurement site.
Unit: The unit of the concentration measurement.
Source: The source of the data.
Site_Type: The type of site being measured (E.g. Urban, Roadside, Rural)
Date: The date stamp of the measurement.
Measurement Category: The category of the measurement (E.g. Air Quality or Vet Med)
Longitude: The longitude of the measurement site.
Latitude: The Latitude of the measurement site.
Now do the same thing for the water quality data.
all_data.filter(pl.col('Measurement Category') == 'Vet meds').head()
| Pollutant | Concentration | Site_ID | Unit | Source | Site_Type | Date | Measurement Category | Longitude | Latitude |
|---|---|---|---|---|---|---|---|---|---|
| str | f64 | str | str | str | str | datetime[μs, UTC] | str | f64 | f64 |
| "Fipronil" | 0.5 | "49000209" | "ug/l" | "GCMS" | "PE" | 2016-08-10 12:00:00 UTC | "Vet meds" | 0.113421 | 53.57023 |
| "Fipronil" | 0.5 | "G0006097" | "ug/l" | "GCMS" | "FZ" | 2022-08-16 08:16:00 UTC | "Vet meds" | -1.144528 | 50.887405 |
| "Fipronil" | 0.5 | "MISCTL66" | "ug/l" | "GCMS" | "PE" | 2011-05-22 02:35:00 UTC | "Vet meds" | 0.340553 | 52.214984 |
| "Fipronil" | 0.5 | "MISCSK95" | "ug/l" | "GCMS" | "PE" | 2011-07-09 23:10:00 UTC | "Vet meds" | -0.65915 | 53.039711 |
| "Fipronil" | 0.5 | "MISCSK95" | "ug/l" | "GCMS" | "PE" | 2011-07-10 08:26:00 UTC | "Vet meds" | -0.65915 | 53.039711 |
Now that we have inspected our data we can have a quick look at the NUTS1 regions to see what they look like.

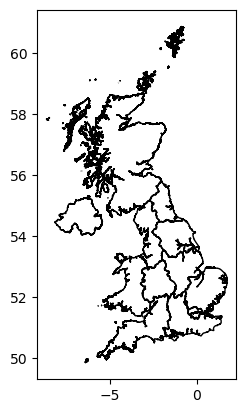

NUTS_gdf.plot(facecolor='none', edgecolor='black')
<Axes: >
Example Place Based Analysis.#
Now that we have all our data loaded and we have a basic understanding of what it contains we can start thinking about asking hypothetical questions about the dataset. In this example we want to ask ‘I lived in the North East of England from 2000 to 2025, what sort of pollution might I have been exposed to?’
First lets plot a close up of our region of interest and see how many measurement sites we have in that region.
fig_NE, ax_NE = plt.subplots(figsize=(7, 5))
Sites_in_NE = Sites_info_gdf[['Site_ID', 'geometry']].loc[Sites_info_gdf.geometry.within(NUTS_gdf.geometry.iloc[0])]
#Polygon.
NUTS_gdf.iloc[[0]].plot(ax=ax_NE, facecolor='none', edgecolor='black')
#Filter the sites by just the current region.
#curr_rgn_sites = Sites_info_gdf.copy().loc[Sites_info_gdf.geometry.within(NUTS_gdf.iloc[[0]]['geometry'])]
# Overlay all points - dont distinguish by category.
ax_NE.scatter(Sites_in_NE.geometry.x,Sites_in_NE.geometry.y, s=50, color='black')
# Add labels and legend
ax_NE.set_xlabel('Longitude')
ax_NE.set_ylabel('Latitude')
#Set the title.
ax_NE.set_title('Measurement Sites in : ' + NUTS_gdf['nuts118nm'].iloc[0])
Text(0.5, 1.0, 'Measurement Sites in : North East (England)')
Calculating summary of chemicals measured in the region of interest#
Great so we now know that there are quite a few measurement sites in our region of interest however we now need to know what sort of chemicals are being measured at these sites and what sort of concentrations are being recorded by the various instruments. This requires a number of steps and interactions with the data in order to get the information we need. A summary of this workflow is as follows:
Use the boundary of the North East England region to filter the main dataset to only include measurement locations that fall within the boundary.
Further filter the data to remove any measurements that fall outside our date range of interest (2000-2025) - in this case this was handled in the pre-processing steps to ensure that only data from the 2000 to 2025 time period was include in the parquet file.
Filter the data to exclude any time stamps where there was not a concentration recorded or there is a negative value recorded which indicates missing data.
Calculate some simple summary statistics for each unique chemical measured in the region. These include the min, max and mean concentration, the number of sites measuring that chemical in the region, the date range covered by the measurements along with some contextual information on the data (source, unit, site type, etc).
As shown above this requires a number of different steps and complex operations on our dataset. The code that implements this is shown below. It has been setup to operate both within the notebook and the interactive dashboard environment. This function outputs a table containing the summary information for the given region. It takes a single input index representing the NUTS1 region to be analysed.
#Function to calculate a summary of the chemical data in a selected region.
def calc_chem_summary(index):
#Check for empty index if no selection yet made.
if not index:
out_col_list = ['Pollutant', 'Min Concentration', 'Max Concentration', 'Mean Concentration',
'Number of Sites', 'Measurement Category', 'Unit', 'Measurement Source',
'Sample Type', 'Date of first measurement', 'Date of last measurement']
return hv.Table(pd.DataFrame(columns=out_col_list)).opts(width=1200, height=400)
#If we have an index pick the geometry for filtering.
selected_poly = NUTS_gdf.geometry.iloc[index[0]]
# Filter sites in a specific polygon - this will be picked up using the index from the selector.
Sites_in_poly = Sites_info_gdf['Site_ID'].loc[Sites_info_gdf.geometry.within(selected_poly)]
#If no chemicals for given site pass back empty table.
if Sites_in_poly.shape[0] == 0:
out_col_list = ['Pollutant', 'Min Concentration', 'Max Concentration', 'Mean Concentration',
'Number of Sites', 'Measurement Category', 'Unit', 'Measurement Source',
'Sample Type', 'Date of first measurement', 'Date of last measurement']
return hv.Table(pd.DataFrame(columns=out_col_list)).opts(width=1200, height=400)
else:
# Get the data.
curr_rgn_data = all_data.filter((pl.col('Site_ID').is_in(Sites_in_poly) == True) & (pl.col('Concentration') > 0.0))
#Get the required summary for the region.
summ_rgn_data = curr_rgn_data.group_by('Pollutant').agg([
pl.col('Concentration').min().alias('Min Concentration'),
pl.col('Concentration').max().alias('Max Concentration'),
pl.col('Concentration').mean().alias('Mean Concentration'),
pl.col('Site_ID').n_unique().alias('Number of Sites'),
pl.col('Measurement Category').unique().alias('Measurement Category'),
pl.col('Unit').unique().alias('Unit'),
pl.col('Source').unique().alias('Measurement Source'),
pl.col('Site_Type').unique().alias('Sample Type'),
pl.col('Date').min().alias('Date of first measurement'),
pl.col('Date').max().alias('Date of last measurement')])
#Format the correct output for columns where multiple categories are returned.
summ_rgn_data = summ_rgn_data.with_columns(pl.col('Unit').list.join(',').alias('Unit'),
pl.col('Measurement Source').list.join(',').alias('Measurement Source'),
pl.col('Sample Type').list.join(',').alias('Sample Type'))
#Return either as a holoviews table (if in a panel app) or a pandas dataframe (if in the notebook)
if pn.state.served == True:
summ_reg_table = hv.Table(summ_rgn_data.to_pandas()).opts(width=1200, height=400)
else:
summ_reg_table = summ_rgn_data.to_pandas()
return summ_reg_table
So now that the analysis function is setup we can run it for our region of interest. In this case we want the North East of England so the first thing to do is find out what the index of this region is by inspecting the NUTS1 geospatial dataframe.
#Print the NUTS1 dataframe.
NUTS_gdf
| OBJECTID | nuts118cd | nuts118nm | bng_e | bng_n | long | lat | GlobalID | geometry | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | UKC | North East (England) | 417313 | 600358 | -1.728900 | 55.297031 | b960bad6-f727-45f1-8319-75ad9d8aa82a | MULTIPOLYGON (((-2.02941 55.76884, -2.0284 55.... |
| 1 | 2 | UKD | North West (England) | 350015 | 506280 | -2.772370 | 54.449451 | 2543ce15-4a5d-42dd-8110-b5568bd7b560 | MULTIPOLYGON (((-2.67644 55.17304, -2.67769 55... |
| 2 | 3 | UKE | Yorkshire and The Humber | 446903 | 448736 | -1.287120 | 53.932640 | 33a3ba53-4810-498e-9468-8eab341861a5 | MULTIPOLYGON (((-0.79223 54.55947, -0.78962 54... |
| 3 | 4 | UKF | East Midlands (England) | 477660 | 322635 | -0.849670 | 52.795719 | 683a7565-12d4-458d-8405-d95a4d94aaa6 | MULTIPOLYGON (((-0.30093 53.61639, -0.29824 53... |
| 4 | 5 | UKG | West Midlands (England) | 386294 | 295477 | -2.203580 | 52.556969 | 38472600-07d2-4115-80ad-fe314b8700a5 | POLYGON ((-1.95073 53.2119, -1.94881 53.21166,... |
| 5 | 6 | UKH | East of England | 571074 | 263229 | 0.504146 | 52.240669 | 6b764e5d-5e36-46fc-934d-b2e0ad39f826 | MULTIPOLYGON (((1.01574 52.97136, 1.01639 52.9... |
| 6 | 7 | UKI | London | 517516 | 178392 | -0.308640 | 51.492271 | 7dad658c-1763-4cd7-8509-fc95a6807a08 | MULTIPOLYGON (((-0.09954 51.69111, -0.09478 51... |
| 7 | 8 | UKJ | South East (England) | 470062 | 172924 | -0.993110 | 51.450970 | 412463e0-a040-4186-873b-5bdaaf139ab2 | MULTIPOLYGON (((-0.68465 52.19634, -0.68124 52... |
| 8 | 9 | UKK | South West (England) | 285015 | 102567 | -3.633430 | 50.811192 | cb520f76-4219-43f0-89f8-7cce740af115 | MULTIPOLYGON (((-1.75768 52.10316, -1.75598 52... |
| 9 | 10 | UKL | Wales | 263406 | 242881 | -3.994160 | 52.067410 | cc785f34-0719-42c4-82c0-198fe5297841 | MULTIPOLYGON (((-3.33533 53.35551, -3.32734 53... |
| 10 | 11 | UKM | Scotland | 277746 | 700060 | -3.970910 | 56.177429 | b3dd1034-f81f-49e0-b6d4-d57dbe00e976 | MULTIPOLYGON (((-5.86165 56.8242, -5.8615 56.8... |
| 11 | 12 | UKN | Northern Ireland | 86601 | 535325 | -6.854810 | 54.614941 | b95d0a9e-cf53-40f4-bef8-0fabd6441fad | MULTIPOLYGON (((-6.48071 55.25196, -6.47867 55... |
We can see that the North East region is the first one on the list and python counts the first element as index 0, therefore if we want the summary statistics we need to run the summary function with an input of zero. This needs to be supplied as a list object. As shown above there are 11 NUTS1 level regions in the UK so if we say wanted to run the same analysis for Wales we could just run the summary function with an input of 9. However we want the NE of England so lets proceed with calculating the summary for that.
calc_chem_summary([0])
| Pollutant | Min Concentration | Max Concentration | Mean Concentration | Number of Sites | Measurement Category | Unit | Measurement Source | Sample Type | Date of first measurement | Date of last measurement | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Erythromycin | 0.005000 | 0.005000 | 0.005000 | 1 | [Vet meds] | ug/l | LCMS | F6 | 2016-02-05 10:08:00+00:00 | 2017-10-13 13:09:00+00:00 |
| 1 | no2 | 0.151990 | 144.704960 | 21.863488 | 11 | [Air quality] | ug/m3 | aurn | Urban Industrial,Urban Traffic,Urban Backgroun... | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 2 | co | 0.004167 | 2.241667 | 0.302103 | 4 | [Air quality] | mg/m3 | aurn | Urban Background,Suburban Background,Urban Tra... | 2000-01-01 00:00:00+00:00 | 2012-12-29 00:00:00+00:00 |
| 3 | Imidacloprid | 0.001000 | 0.009500 | 0.003217 | 2 | [Vet meds] | ug/l | LCMS | F6,CE | 2016-02-05 10:08:00+00:00 | 2023-03-08 09:52:00+00:00 |
| 4 | Fipronil | 0.000200 | 0.203000 | 0.018651 | 17 | [Vet meds] | ug/l | GCMS,LCMS | F6,CE,FA | 2014-07-15 11:37:00+00:00 | 2024-06-21 09:59:00+00:00 |
| 5 | pm10 | 0.282000 | 189.263000 | 16.889392 | 9 | [Air quality] | ug/m3 | aurn | Urban Traffic,Urban Background,Rural Backgroun... | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 6 | o3 | 0.166670 | 129.250000 | 47.562943 | 6 | [Air quality] | ug/m3 | aurn | Urban Background,Rural Background,Suburban Bac... | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 7 | no | 0.036380 | 376.178170 | 12.419771 | 11 | [Air quality] | ug/m3 | aurn | Urban Industrial,Urban Traffic,Urban Backgroun... | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 8 | nox | 0.907510 | 693.946770 | 40.854868 | 11 | [Air quality] | ug/m3 | aurn | Urban Industrial,Urban Traffic,Urban Backgroun... | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 9 | Clarithromycin | 0.000900 | 0.008300 | 0.003469 | 2 | [Vet meds] | ug/l | LCMS | CE,F6 | 2016-02-05 10:08:00+00:00 | 2023-12-01 10:07:00+00:00 |
| 10 | pm2.5 | 0.083000 | 77.108000 | 8.691994 | 9 | [Air quality] | ug/m3 | aurn | Urban Traffic,Urban Background,Rural Background | 2008-08-27 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
| 11 | so2 | 0.017100 | 87.125000 | 4.664112 | 5 | [Air quality] | ug/m3 | aurn | Urban Background,Suburban Background | 2000-01-01 00:00:00+00:00 | 2025-11-02 00:00:00+00:00 |
Chemical specific analysis and visualisation#
As the above table shows the measurements sites in this region cover 11 different chemicals (4 Veterinary medicines and 7 air quality pollutants) with varying coverage across the region. E.g. Nitrogen Dioxide (\(NO_2\)) is measured at 14 different locations, Fipronil is measured at 17 locations, Carbon monoxide (CO) is only measured at 4 locations and Erythromycin is only measured at 1. Now we know what sort of chemicals are being measured we will want to look at specific chemicals on more detail. Depending on the chemical type (air quality or Vet Med) we will want to perform different types of analysis and visualisation to best represent the data.

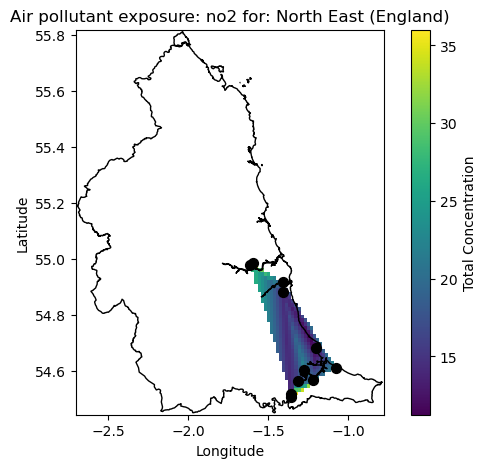

Air Quality: As there are a large number of locations measuring the air quality pollutants and there are not boundaries between these locations we can use simple spatial interpolation to estimate the distribution of the pollutant at the locations between the sites. This is done by creating a grid over the region and using simple linear interpolation (based on the values at the measurements site) to estimate the values at the grid points. This is done using mean exposure over the time period 2000 to 2025. We use the
griddatafunction from the scipy package to do the interpolation. This function can also handle other forms of interpolation such as nearest neighbour or cubic but we have used linear here. We can then visualise the resultant spatial distribution on a map.Vet Meds: As the Vet Meds data are represented as river samples we cannot use the same interpolation method due to constraints imposed by the river network. Therefore to understand the level of exposure for Vet Meds we simply just calculate the cumulative exposure (over the time period 2000 to 2025) at each site and color code the site marker based on the total level of exposure. This can then be visualised on a map.
As with the calculation of the summary statistics the main dataset needs to be filtered based on the region and chemical of interest and then the various analytical methods need to be run to produce the desired outputs. The function below performs all the required processing, analysis and visualisation depending on the region and chemical type input into it.

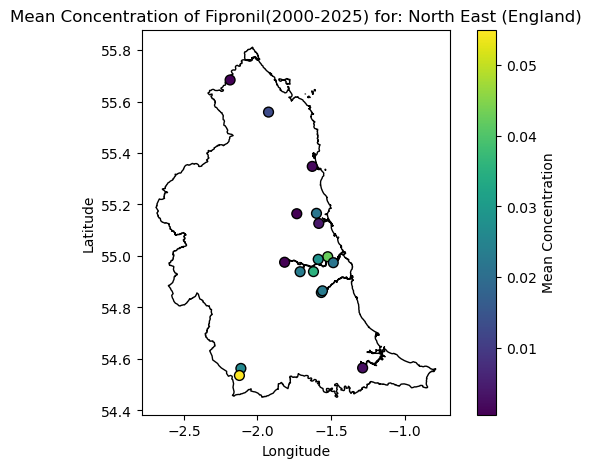

def plot_chem_sites(index, chem):
#If no selection made display nothing.
if not index:
return gv.Polygons([], label='Please select a polygon to view data').opts(width=800,height=400, shared_axes=False)
# If we have an index pick the geometry for filtering.
selected_poly = NUTS_gdf.geometry.iloc[index[0]]
Sites_in_poly = Sites_info_gdf[['Site_ID', 'geometry']].loc[Sites_info_gdf.geometry.within(selected_poly)]
# Get the data.
curr_rgn_data = all_data.filter(pl.col('Site_ID').is_in(Sites_in_poly['Site_ID']) == True).select(['Site_ID', 'Pollutant', 'Concentration','Measurement Category'])
#If no data for the selected chemical return nothing.
if curr_rgn_data.shape[0] == 0:
if pn.state.served == True:
return gv.Polygons([], label='No Data for selected chemical for this region.').opts(width=800,height=400, shared_axes=False)
#Run a check on data type to plot, for vet meds plot locations and heatmap by samples, if AQ plot spatial distribution based on measurements.
if curr_rgn_data.filter(pl.col('Pollutant') == chem).select('Measurement Category').unique().item() == 'Vet meds':
count_df = curr_rgn_data.filter(pl.col('Pollutant') == chem).group_by('Site_ID').agg([pl.col('Concentration').mean().alias('Mean_Concentration')])
curr_chem_pts = Sites_in_poly.merge(count_df.to_pandas(), on='Site_ID')
#Now create the map.
#If in panel app pass out interactive plot if in regular notebook pass out static plot.
if pn.state.served == True:
#Polygons first.
curr_poly_layer = gv.Polygons(selected_poly).opts(color='black', fill_alpha=0, line_width=2, projection=ccrs.PlateCarree()) #Fill alpha sets fill to transparent.!
#Create a heatmap of points based on number of samples.
curr_pts_layer = gv.Points(curr_chem_pts, vdims=['Site_ID','Mean_Concentration']).opts(
size=10,
color='Mean_Concentration',
cmap='Viridis',
tools=['hover'],
width=600,
height=400,
title='Mean Concentration of ' + chem + '(2000-2025) for: ' + NUTS_gdf['nuts118nm'].iloc[index[0]]
)
#Create the combined plot and set the dimensions.
curr_chem_plot = (curr_poly_layer * curr_pts_layer).opts(width=800,height=400, shared_axes=False)
else:
plt.ioff() #Turns of interactive mode in pyplot to prevent render of blank plot when fig, ax called.
#Plot the data as a staic matplotlib plot if not in a panel app.
fig, ax = plt.subplots(figsize=(7, 5))
#Polygon.
NUTS_gdf.iloc[[index[0]]].plot(ax=ax, facecolor='none', edgecolor='black')
# Overlay points
points = ax.scatter(curr_chem_pts.geometry.x, curr_chem_pts.geometry.y, c=curr_chem_pts.Mean_Concentration, cmap='viridis', s=50, edgecolor='black', label='Measurement Sites')
fig.colorbar(points, ax=ax, label='Mean Concentration')
# Add labels and legend
ax.set_xlabel('Longitude')
ax.set_ylabel('Latitude')
#Set the title.
ax.set_title('Mean Concentration of ' + chem + '(2000-2025) for: ' + NUTS_gdf['nuts118nm'].iloc[index[0]])
curr_chem_plot = fig
elif curr_rgn_data.filter(pl.col('Pollutant') == chem).select('Measurement Category').unique().item() == 'Air quality':
#Calculate the total exposure to the air pollutant.
total_exp_df = curr_rgn_data.filter(pl.col('Pollutant') == chem).group_by('Site_ID').agg([pl.col('Concentration').mean().alias('Mean Exposure')])
curr_chem_pts = Sites_in_poly.merge(total_exp_df.to_pandas(), on='Site_ID')
#Filter on where we have data.
curr_chem_pts = curr_chem_pts.loc[(curr_chem_pts['Mean Exposure'] > 0.0) & (curr_chem_pts['Mean Exposure'].isnull() == False)]
# KDE heatmap
x = curr_chem_pts.geometry.x
y = curr_chem_pts.geometry.y
weights = curr_chem_pts['Mean Exposure'].values
# Grid over polygon bounds - this will be used to model the exposure across the region on.
xmin, ymin, xmax, ymax = selected_poly.bounds
xx, yy = np.mgrid[xmin:xmax:100j, ymin:ymax:100j] #Meshgrid for modelling the KDE on
# Quick check to see if we have enough data to fit the interpolation - if not just pass out zeros.
if len(weights) >= 4:
density = griddata(np.column_stack([x,y]), weights, (xx, yy), method='linear')
else:
density = np.zeros(xx.shape)
#Depending on if running in a notebook render as either holoviews (panel app) or matplotlib (notebook).
if pn.state.served == True:
# Holoviews Image
AQ_heatmap = hv.QuadMesh((xx,yy,density)).opts(cmap='Viridis',alpha=0.6,tools=['hover'],line_color=None,line_width=1,
width=600,
height=400,title='Air pollutant exposure: ' + chem)
#Also add the locations of the sampling points for the current AQ pollutant.
curr_pts_layer = gv.Points(curr_chem_pts, vdims=['Site_ID']).opts(
size=10,
color='Black',
tools=['hover'],
width=600,
height=400,
title='Sample Density Heatmap'
)
#Polygon layer.
curr_poly_layer = gv.Polygons(selected_poly).opts(color='black', fill_alpha=0, line_width=2,projection=ccrs.PlateCarree()) # Fill alpha sets fill to transparent.!
#Produce the final plot.
curr_chem_plot = (curr_poly_layer * AQ_heatmap * curr_pts_layer).opts(width=600, height=400, shared_axes=False)
else:
plt.ioff() #Turns of interactive mode in pyplot to prevent render of blank plot when fig, ax called.
fig, ax = plt.subplots(figsize=(7, 5))
#Plot the data as a staic matplotlib plot if not in a panel app.
mesh = ax.pcolormesh(xx, yy, density, cmap='viridis', shading='auto')
fig.colorbar(mesh, ax=ax, label='Total Concentration')
#Polygon.
NUTS_gdf.iloc[[index[0]]].plot(ax=ax, facecolor='none', edgecolor='black')
# Overlay points
ax.scatter(curr_chem_pts.geometry.x, curr_chem_pts.geometry.y, color='black', s=50, edgecolor='black', label='Measurement Sites')
# Add labels and legend
ax.set_xlabel('Longitude')
ax.set_ylabel('Latitude')
#Set the title.
ax.set_title('Air pollutant exposure: ' + chem + ' for: ' + NUTS_gdf['nuts118nm'].iloc[index[0]])
curr_chem_plot = fig
return curr_chem_plot
Say we want to see the exposure to Nitrogen Dioxide in the NE of England from 2000 to 2025 we can call the above function as follows and view the resultant map.
plot_chem_sites([0], 'no2')
As we can see from the map the measurement locations are centred around the main urban areas of Newcastle, Sunderland and Kingston upon Hull where mean exposure if approaching 30 ug/m3 around the regions. We do however see elevated levels of exposure in the intermediate locations between the major cities. It should be noted that this is only a simple interpolation for purposes of method demonstrations and more detailed and advanced analytical approaches will be needed to truly investigate the data.
Now lets have a look at what we get it focussing on the Veterinary medicines, in this case the common flea treatment of Fipronil which is potentially harmful to aquatic organisms. We can use the same function again to look at this.
plot_chem_sites([0], 'Fipronil')
Breaking down the barriers to running complex analysis#
As shown above the methods presented provide us with a good starting point to begin to understand what sort of chemical pollutants we would be exposed for a particular region over a particular time period. It has also been demonstrated that you can change the place or chemical of interest and re-run the analysis in fairly few steps but this does require some coding experience and understanding of the python coding language. In order to make the workflow more accessible to non-coders and allow interactive exploration of the dataset the notebook has been setup to run as an interactive dashboard app using the panel package. This code in the notebook has been setup so that it can run in either interactive dashboard or notebook mode with no changes. The code cell below shows the code that runs the app as a dashboard. For clarity this code has been hidden by default but can be viewed by expanding the drop down.
Running the app in dashboard mode#
To run the notebook as an interactive dashboard simply navigate to the folder containing the notebook in a terminal window and serve the notebook as a Bokeh app as the command line:
bokeh serve --show EEX-placebased-exposure.ipynb
Although this step requires some command line experience the result is a fully interactive dashboard that can be accessed from a web browser.
Summary#
In summary this notebook has presented a simple demonstration of how to approach the challenge of understanding what sort of chemical pollution you might be exposed to in a particular location. The methods demonstrated here are not meant to be exhaustive and are setup as a starting point on which users can build upon to create a more detailed analysis for their own datasets. As a reminder this notebook demonstrated the following:
Loading in a large dataset containing both air quality and and Veterinary medicine pollutant concentrations at various locations around the UK
Loading in a shapefile containing the UK NUTS1 regions to represent places of interest.
Filtering the main dataset based on a region of interest and calculating summary statistics for all chemicals measured in that region.
Performing chemical specific analysis and visualisation depending on the chemical type (air quality or Vet Med).
Running the notebook as an interactive dashboard to allow non-coders to explore the datasets and also visualise the results.
The methods presented here are expected to be updated as the work on the EEX Hub develops further and will ultimately be utilised as tools to help realise the vision of the Hub.
