Plot a sea-mask raster

Creates a map of a sea-mask raster and overlays coastlines for geographical context.

Usage

plot_seamask(seamask, title = "Coastline and bird distribution")

Arguments

seamask

A raster::RasterLayer object containing sea-mask data, such as the object returned by get_example_seamask().

title

Character string giving the plot title. Defaults to "Coastline and sea mask".

Value

A ggplot2::ggplot() object showing land, sea, and the coastline.

Details

Cells containing missing values are classified as land, while cells containing non-missing values are classified as sea.

The coastline data supplied with the package are transformed to the coordinate reference system of seamask before plotting.

See also

get_example_seamask() for loading the example sea-mask raster.

Other plotting functions: plot_BirdFlightMap(), plot_DBS_map(), plot_DD_map(), plot_DD_map_with_ORDs(), plot_ORD_obstruction(), plot_ORDpoly(), plot_adult_body_mass(), plot_brddata(), plot_calibration_outputs(), plot_chick_survival(), plot_colony_location(), plot_flight_distance(), plot_fltdist_base(), plot_frgcompdata()

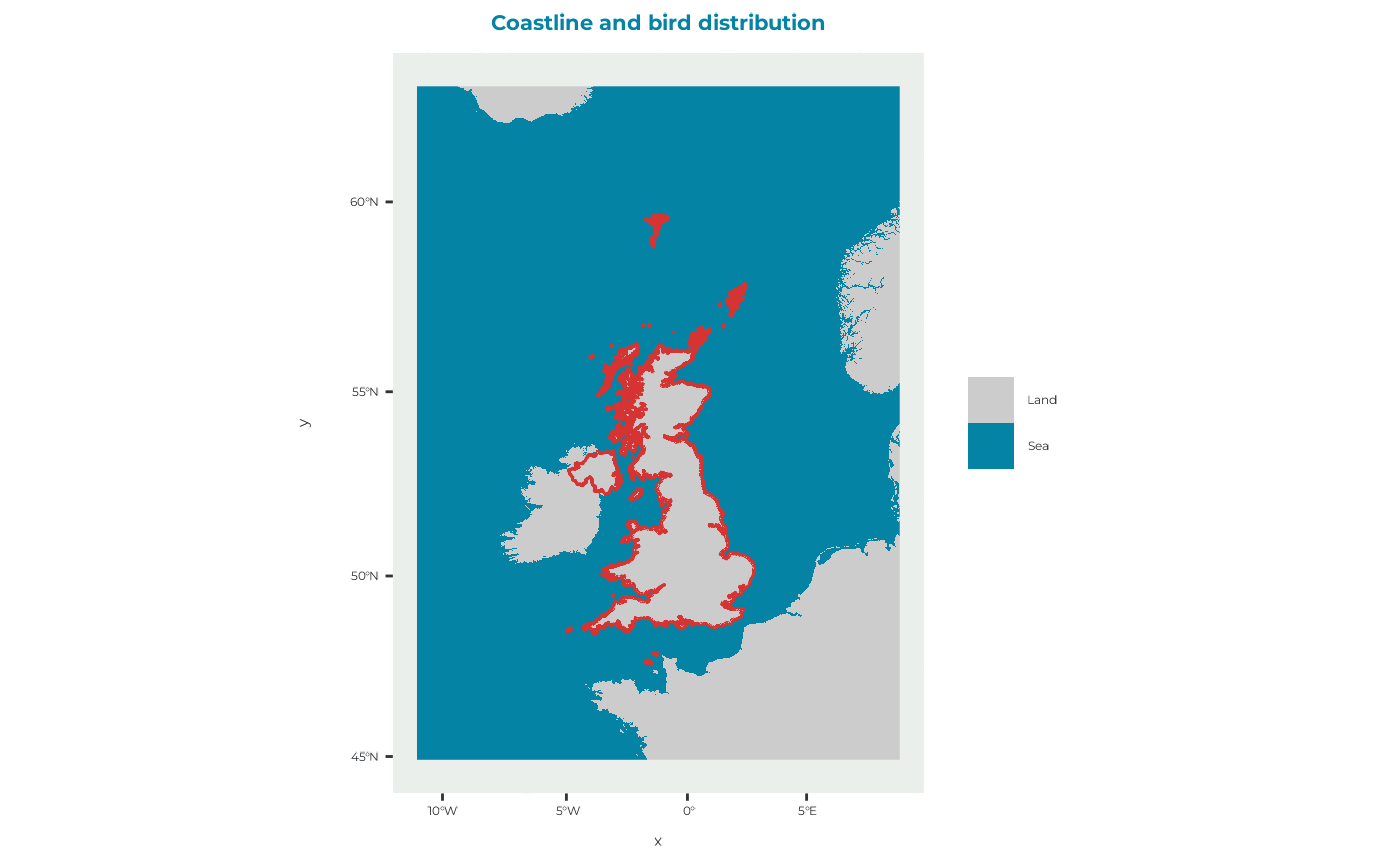

Examples

# Load and plot the example sea mask
seamask <- get_example_seamask()
plot_seamask(seamask)
